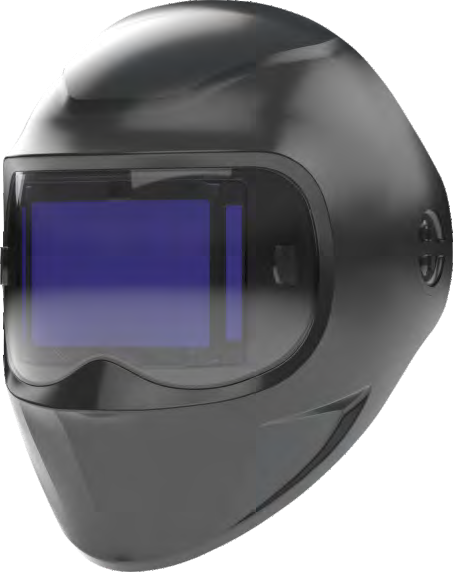

Auto Darkening weIding HeImet WH16 by Goldland

Name: Auto Darkening weIding HeImet WH16 by Goldland
Brand: welding helmet - Powered Air-Purifying Respirators (PAPR)
SKU: GL-WH16
Availability: InStock
Rating: 5 (1 reviews)

No.GL-WH16

Full head protection during welding and cutting with unrivalled ergonomics and comfortable air distribution
Slide-up mechanism for quick change between different work steps
Custom welding helmet designs can be made according to the drawings provided by customers
Multiple shade filters and various welding helmet designs can be combined and matched

Get The Latest Quote

Description

Precision Protection for Professional Welders and Industrial Operators
The Auto Darkening Welding Helmet WH16 is engineered for rigorous welding and cutting tasks, targeting welders, metal fabricators, and maintenance professionals who require dependable eye and head safety. This welding hood delivers full coverage with an adjustable auto-darkening filter that dynamically controls light transmission, preventing arc-related damage. Its ergonomic contour and enhanced air distribution reduce fatigue and heat buildup during extended operations, making it an essential piece of custom welding hoods for industrial workforces focused on safety compliance and productivity.

Advanced Optical and Functional Specifications for Enhanced Safety
Equipped with a rapid 0.04 ms switching auto-darkening filter and four arc sensors, this auto darkening welding hood adjusts shade levels (DIN 5-14) precisely for varied tasks including cutting, welding, and grinding. The helmet features a slide-up design enabling quick transitions between operations without removal, supporting workflow efficiency. Powered by solar cells and a rechargeable 3.7V/500mAh battery with USB-C charging, the system offers extended use and fast recharge. Multiple user-adjustable parameters—sensitivity, delay, and memory settings—allow full customization to welding conditions, integrating seamlessly into diverse operational protocols while maintaining certification to ISO 16321, CE, ANSI Z87.1, CSA Z94.3, and AS/NZS standards.

Integration in Diverse Industrial Applications with Compliance Assurance
This welding hood cover is optimized for demanding environments such as manufacturing plants, construction sites, and training facilities. Its robust construction and certified impact resistance support high-compliance safety programs, crucial for companies prioritizing regulatory adherence and worker protection. The WH16 facilitates improved labor efficiency through ergonomic design and quick shade adaptability, fitting into broader safety systems including protective clothing and respirators. Its compatibility with varied welding processes and environments underscores its role in enabling cost-effective, standardized safety across sectors requiring durable and adjustable custom welding hoods solutions.

Product Advantages

Robust Design and Modular Usability for Industrial Safety Systems
The Auto Darkening Welding Helmet WH16 integrates advanced construction via hardened injection molding and dual protective lenses, providing durable defense against impact and debris. Its modular design includes a slide-up mechanism that supports multi-task workflows without the need to remove the welding hood headgear, increasing operational flow. The helmet’s adjustable shade technology and four arc-sensor array enhance detection accuracy across diverse arc welding processes. Adaptable fit and ventilation features target user comfort without compromising safety, positioning the welding hood cover as a key element for effective personal protective equipment assembly.

Operational Efficiency and Enhanced User Experience in Welding Environments
This auto darkening welding hood delivers rapid switching speed and configurable shade settings, supporting a wide range of welding amperage applications, including TIG above 5 amps. Its solar-powered battery with USB-C recharge ensures sustained usability in both workshop and field conditions, minimizing downtime. Ergonomic shaping and internal air circulation reduce wearer fatigue during prolonged use, enhancing operator performance and safety compliance. The helmet’s memory control for personalized settings allows consistent repeatability, boosting productivity in industrial and maintenance workspaces where reliable custom welding hoods are mandated.

GL-WH16S-1032A
Auto-Darkening Welding Helmet
Model		GL-WH16S-1032A

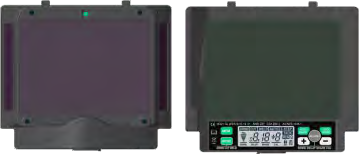

Auto Filter Model		GL-1032A
Auto Filter Size		142 x 126 × 9mm
Viewing Area		110 × 80mm
Shade Control		Light States: DIN 3 Dark States: DIN 5 - 9 / 10 - 14 V1
Switching Time		0.04ms
Sensitivity Control		1 - 6, 4 - 6 TIG, InternalAdjustment
Delay Control Time		1 - 9 ( 0.1 -1.7 sec ), Internal Adjustment
Mode Control		CUT: Shade 5 - 9, WELD: Shade 10 - 14, GRIND: Shade 3
Adjustment Control		SENSI, DELAY, SHADE, Shade Compensation CAL
Memory Control		3 functions to setmemory
Auto Shade/Lock Shade Control		Sensingarc light automaticallyadjusts the shade; The shade is locked in the Dark State
Power Control		Auto on, Auto off
Power Supply		Solar Cells, 3.7V / 500mAh Battery Rechargeable USB - C Charging Time 2 - 2.5H
Arc Sensors		4 Arc sensors
TIGAmpere		> 5 Ampere
ADF Optical class		1/ 1/ 1/ 1 True Color
Operating&StoringTemperature		- 10 ℃ to + 65 ℃, - 20 ℃ to + 85 ℃
Internal&Outside Protection Lens		Internal: 112 x 83 × 1mm & Outside:197 × 119 × 1.5mm lnjection molding
Certification		ISO 16321 GL W3 / 5 - 9 / 10 - 14V1 CE; ANSI Z87.1 CSA Z94.3; AS / NZS 1337 / 1338

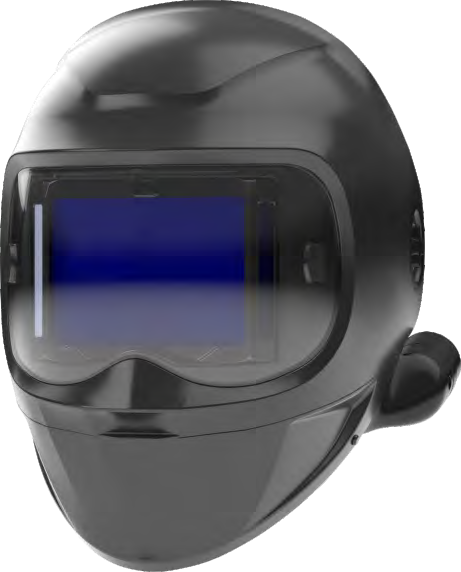

GL-WH16F-1032A
Auto-Darkening Welding Helmet
Model		GL-WH16F-1032A
Auto Filter Model		GL-1032A
Auto Filter Size		142 × 126 × 9mm
Viewing Area		110 × 80mm
Shade Control		Light States: DIN 3 Dark States: DIN 5 - 9 / 10 - 14 V1
Switching Time		0.04ms
Sensitivity Control		1 - 6, 4 - 6 TIG, InternalAdjustment
Delay Control Time		1 - 9 ( 0.1 - 1.7 sec ), InternalAdjustment
Mode Control		CUT: Shade 5 - 9, WELD: Shade 10 - 14, GRIND: Shade 3
Adjustment Control		SENSI, DELAY, SHADE, Shade Compensation CAL
Memory Control		3 functions to setmemory
Auto Shade/LockShade Control		Sensing arc lightautomatically adjusts the shade; The shade is locked in the Dark State
Power Control		Auto ON, Auto OFF
PowerSupply		Solar Cells, 3.7V / 500mAh Battery Rechargeable USB-C ChargingTime 2 - 2.5H
Arc Sensors		4 Arc sensors
TIGAmpere		> 5 Ampere
ADF Optical class		1/ 1/ 1/ 1 True Color
Operating&Storing Temperature		- 10 ℃ to + 65 ℃, - 20 ℃ to + 85 ℃
Internal &Outside Protection Lens		Intermal: 112 x 83 x 1mm & Outside: 197 × 119 × 1.5mm Injection molding
Certification		ISO 16321 GL W3 / 5 - 9 / 10 - 14 V1 CE; ANSI Z87.1 CSAZ94.3; AS / NZS 1337 / 1338

Use Scenarios

Application in High-Compliance Manufacturing and Fabrication Plants
Within manufacturing and metal fabrication environments, the Auto Darkening Welding Helmet WH16 functions as critical head and eye protection, complying with stringent safety standards like ISO 16321 and ANSI Z87.1. Welders and cutting operators benefit from the helmet’s adjustable welding hood headgear, which supports rapid shade changes essential for process variability. Its robust protective lenses and ergonomic design reduce risk of arc flash injury and physical strain, integrating seamlessly into plant PPE protocols and workflow systems demanding reliable, customizable custom welding hoods that meet industrial safety and operational efficiency requirements.

Role in Field Maintenance and Construction with Portability Advantages
In field operations including construction, repair, and maintenance, this welding hood provides essential protection with the flexibility of solar-powered, rechargeable battery usage, ensuring continuous operation without dependence on external power sources. The slide-up cover mechanism facilitates fast adaptation between welding and grinding processes, accommodating varied task demands on site. Its compliance to multiple international standards ensures that safety regulations are upheld in dynamic outdoor conditions. The helmet’s compatibility with existing personal protective ensembles supports comprehensive risk mitigation and workflow integration in mobile and remote service environments utilizing auto darkening welding hood solutions.

FAQ

What materials are used in the construction of the Auto Darkening Welding Helmet WH16?
The WH16 welding helmet is made via injection molding using durable materials, featuring internal and external protective lenses to guard against impact and debris. This robust build ensures reliable protection for welding applications requiring certified welding hood headgear.

Can I customize the shade settings on this welding hood for different tasks?
Yes, the WH16 supports adjustable shade levels for cutting (DIN 5-9), welding (DIN 10-14), and grinding (DIN 3) modes. These adjustable features provide tailored protection based on task requirements, enhancing the versatility of this auto darkening welding hood.

How does Goldland support logistics and supply chain reliability for industrial buyers?
Goldland’s production capacity and optimized global logistics ensure stable supply for distributors worldwide. Serving over 150 countries, our scalable supply chain meets large orders with consistent quality, making us a trusted source for custom welding hoods and related safety gear.

What maintenance is required to ensure optimal performance of the WH16 welding hood cover?
Regular inspection and cleaning of the internal and external lenses prevent debris buildup and maintain optical clarity. The rechargeable battery should be charged via USB-C every 2 to 2.5 hours as needed. Proper care extends the lifespan of your welding hood cover and maintains safety performance.
