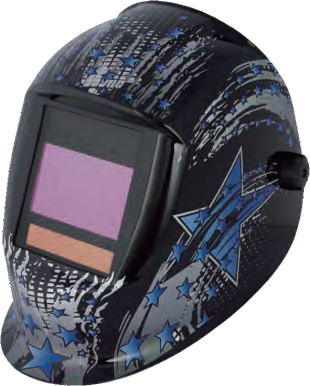

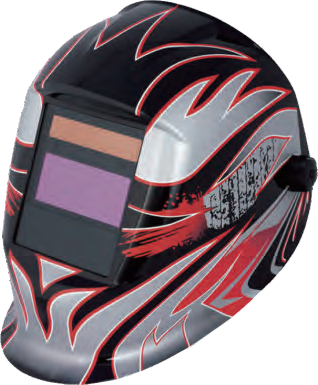

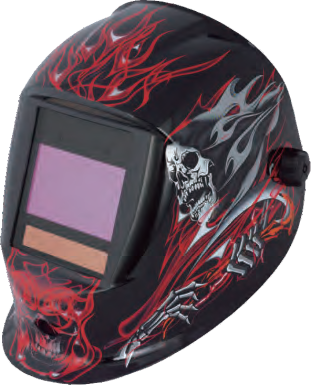

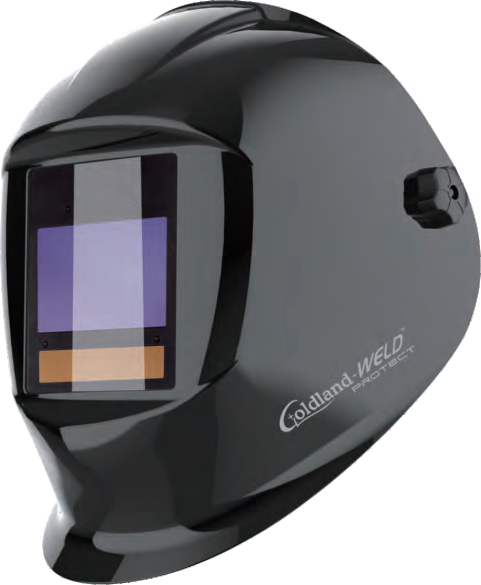

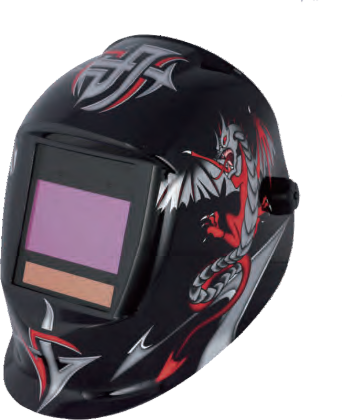

Auto Darkening Welding Helmet WH03

Name: Auto Darkening Welding Helmet WH03
Brand: welding helmet - Powered Air-Purifying Respirators (PAPR)
SKU: GL-WH03
Availability: InStock
Rating: 5 (1 reviews)

No.GL-WH03

Full head protection during welding and cutting with unrivalled ergonomics and comfortable air distribution
Slide-up mechanism for quick change between different work steps
Custom welding helmet designs can be made according to the drawings provided by customers
Multiple shade filters and various welding helmet designs can be combined and matched

Get The Latest Quote

Description

Advanced Protection Tailored for Professional Welders
The auto darkening welding helmet WH03 is engineered to deliver comprehensive safety and comfort for industrial welding and cutting professionals. This welding auto darkening helmet integrates a full head protective shell constructed from durable PA material, ensuring reliable impact resistance and thermal protection. Designed with ergonomic considerations, it facilitates extended wearability for operators in manufacturing plants, fabrication workshops, and maintenance settings. Its advanced auto darkening welding lens instantly adapts to varying arc light intensities, reducing eye strain while maintaining optimal visibility, making it an effective solution for operators requiring precision and compliance with safety standards.

High-Precision Technology and Specifications for Superior Safety
At the core of this auto-darkening welding helmet lies a state-of-the-art auto darkening welding lens featuring rapid response times between 0.08 to 0.1 milliseconds. The system includes four arc sensors for precise arc detection and multiple adjustable shade settings ranging from DIN 4 to DIN 13, allowing fine control over optical density to suit different welding tasks. The helmet’s power supply combines solar cells with replaceable lithium batteries to ensure uninterrupted performance. With viewing areas up to 100 x 93 mm, delay controls adjustable between 0.1 to 1.9 seconds, and certification compliance spanning CE, ANSI Z87.1, CSA Z94.3, and AS/NZS standards, this welding auto darkening helmet prioritizes measurable metrics vital for operator safety and operational reliability.

Versatile Applications Across Industry Welding Operations
This custom auto darkening welding helmet is engineered to meet the diverse requirements found in heavy industry, metal fabrication, and construction sectors. It supports workflows involving arc welding, cutting, and grinding by providing adaptive shade control and rapid switching to facilitate efficiency and quality assurance. The helmet’s ergonomic design enhances operator endurance during prolonged shifts, while its regulatory certifications assure compliance with international occupational safety mandates. Integration with existing production lines is seamless, enabling industrial trainers, quality inspectors, and maintenance crews to protect eyes and face consistently, boosting operational safety and minimizing downtime.

Product Advantages

Innovative Structural Design Ensuring Robustness and Adaptability
The structural design of the welding auto darkening helmet WH03 employs a reinforced polyamide shell that balances durability with lightweight ergonomics to reduce user fatigue. Its modular auto darkening welding lens system includes multiple arc sensors arranged strategically to optimize detection accuracy under varied spatial orientations. The adjustable venting system improves air circulation, supporting temperature regulation during intensive welding cycles. Power architecture combining solar cells and replaceable lithium batteries enables reliable operation without frequent downtime. Moreover, the helmet is amenable to custom auto darkening welding helmet configurations, allowing clients to specify design adaptations to integrate with proprietary PPE systems or brand identity requirements.

Enhanced Performance Delivering Practical Value in Operation
Functionally, this auto-darkening welding helmet offers extremely fast switching speeds and adjustable delay control, enabling welders to maintain continuous focus without interruptions caused by shade transitions. The wide, comfort-optimized headgear design assures stability even during dynamic movements, minimizing adjustments and enhancing workflow efficiency. The diverse shade range settings amplify compatibility with a variety of welding processes, including MIG, TIG, and plasma cutting. Compliance with multiple international certification standards ensures reliable protection against arc flash and UV/IR radiation exposure, contributing to both operator safety and institutional risk management objectives. This system’s balance of comfort, adaptability, and protective performance delivers substantial return on investment for industrial safety programs.


Auto-Darkening Welding Helmet

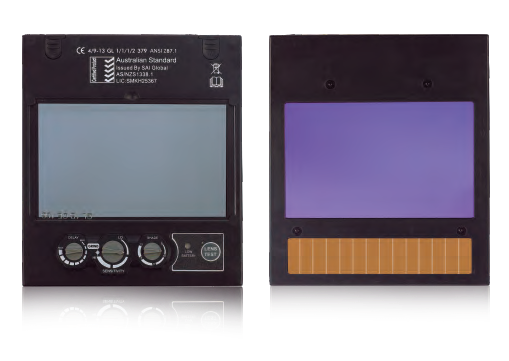

Model	GL-WH03-1008B
Auto Filter Model	GL-1008B
Auto Filter Size	114 x 133x 10mm
Viewing Area	97 × 61mm
Shade Control	Light States: DIN 4 Dark States: DIN 5 - 8 / 9 - 13 Internal Adjustment
Switching Time	0.1ms
Delay Control Time	0.1-1s
Sensitivity /Delay Control	Internal Adjustment
Power Supply	Solar Cells, 3V Li-Battery ( CR2450*2, Replaceable )
Battery Indicator	Red LED light indecates that 2 - 3 days remaining battery life
Lens Control	Lens Test Button*, Auto-On, Auto-Off
Operating Temperature	- 10 ℃ to + 65 ℃
Grind Mode	Yes*
Arc Sensors	4 Arc Sensors
Shell Material	PA
Welding Helmet Weight	565g
CE Approval	EN 166 / 175 / 379 CE, ANSI Z87.1, CSA Z94.3, AS / NZS 1337 / 1338
CE Optical Class	1/ 1/ 1/ 1 True Color


Auto-Darkening Welding Helmet

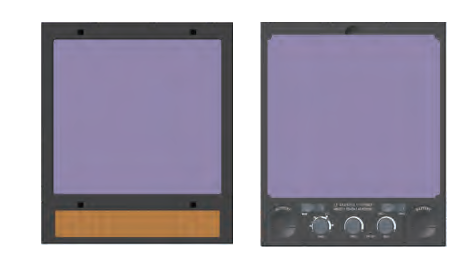

Model	GL-WH03-1026A
Auto Filter Model	GL-1026A
Auto Filter Size	114 x 133 x 10mm
Viewing Area	100 × 93mm
Shade Control	Light States: DIN 4 Dark States: DIN 5 - 8 / 9 - 13 Internal Adjustment
Switching Time	0.08ms
Delay Control Time	0.1 - 1.9s
Digital Control &Display	Shade, Delay Time, Sensitivity, Grind Mode, Battery Status
Power Supply	Solar Cells, 3V Li-Battery ( CR2032*2, Replaceable )
Lens Control	Auto-On, Auto-Off
Operating Temperature	- 10 ℃ to + 65 ℃
Arc Sensors	4 Arc Sensors
Shell Material	PA
Welding Helmet Weight	560g
CE Approval	EN 166 / 175 / 379 CE, ANSI Z87.1, CSA Z94.3, AS / NZS 1337/1338
CE Optical Class	1/ 1/ 1/ 2 True Color


Auto-Darkening Welding Helmet
Model	GL-WH03-1025A
Auto Filter Model	GL-1025A
Auto Filter Size	114 × 133 x 10mm
Viewing Area	100 × 93mm
Shade Control	Light States: DIN 4 Dark States: DIN 5 - 8 / 9 - 13 Internal Adjustment
Switching Time	0.08ms
Delay Control Time	0.1 - 1.9s
Digital Control & DisplayShade	Delay Time, Sensitivity, Grind Mode, Battery Status
Power Supply	Solar Cells, Li-Batteries ( CR2032*2, Replaceable )
Lens Control	Auto-On, Auto-0ff
Operating Temperature	- 10 ℃ to + 65 ℃
Arc Sensors	4 Arc Sensors
Shell Material	PA
Welding Helmet Weight	555g
CE Approval	EN 166/175/379 CE, ANSI Z87.1, CSA Z94.3, AS/NZS1337/1338
CE Optical Class	1/ 1/ 1/ 2 True Color

Use Scenarios

Application in Welding Workshops and Fabrication Plants
In high-volume welding workshops and metal fabrication facilities, the welding auto darkening helmet WH03 serves as a critical component of the personal protective equipment ensemble for production welders and quality inspectors. Its rapid auto darkening welding lens response guarantees immediate protection during arc initiation, reducing cumulative eye fatigue in environments with frequent light variability. The helmet complies with CE and ANSI safety standards required by industry regulations, facilitating seamless implementation within established safety protocols. Its lightweight ergonomic design complements long operational shifts, integrating with ventilation and respiratory PPE systems to maintain user comfort and safety during intensive manufacturing workflows.

Role in Maintenance and Construction Field Operations
During on-site welding and cutting operations in construction and maintenance projects, this custom auto darkening welding helmet offers essential visibility and protection under variable environmental light and spatial conditions. The robust PA shell and four-sensor auto darkening welding lens technology effectively handle bright arc flashes and transient light exposures typical of outdoor and confined spaces. Its adaptable shading controls allow rapid transitions between welding and inspection tasks, supporting efficient project workflows. Compliance with multiple regional PPE certification standards further ensures that contractor operators meet regulatory requirements, aiding in project safety audits and maintaining operational continuity in demanding conditions.

FAQ

What materials are used in the construction of the Auto Darkening Welding Helmet WH03?
The WH03 helmet features a lightweight but durable PA (polyamide) shell, ensuring full head protection without sacrificing comfort. This material is resistant to impact and heat, meeting stringent safety standards to support reliable, long-term industrial use with its auto darkening welding helmet technology.

Can Goldland customize the design of the auto-darkening welding helmet to meet specific client needs?
Yes, Goldland offers custom production options where designs can be adjusted according to customer-provided drawings. This service allows businesses to obtain tailored custom auto darkening welding helmet solutions that fit unique operational or branding requirements.

How is the Auto Darkening Welding Helmet WH03 powered, and does it require frequent battery changes?
The WH03 uses solar cells with a backup replaceable lithium battery (CR2450 or CR2032). This dual power system enhances reliability and reduces battery replacement frequency, ensuring the auto-darkening welding helmet remains operational even in low-light environments.

What certifications does the Auto Darkening Welding Helmet WH03 hold for global compliance?
The helmet meets multiple international safety standards, including CE EN166/175/379, ANSI Z87.1, CSA Z94.3, and AS/NZS1337/1338. These certifications confirm the helmet’s compliance for use in diverse industrial settings requiring trusted protective equipment.
