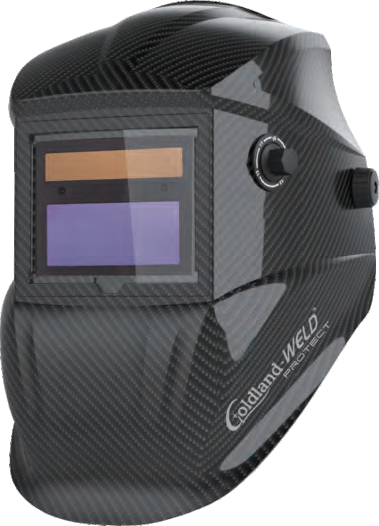

Auto Darkening Welding Helmet WH04 by Goldland

Name: Auto Darkening Welding Helmet WH04 by Goldland
Brand: welding helmet - Powered Air-Purifying Respirators (PAPR)
SKU: GL-WH04
Availability: InStock
Rating: 5 (1 reviews)

No.GL-WH04

Full head protection during welding and cutting with unrivalled ergonomics and comfortable air distribution
Slide-up mechanism for quick change between different work steps
Custom welding helmet designs can be made according to the drawings provided by customers
Multiple shade filters and various welding helmet designs can be combined and matched

Get The Latest Quote

Description

Functional Design to Meet Professional Welding Standards
The Auto Darkening Welding Helmet WH04 is engineered for welding professionals who require reliable head and eye protection during diverse metalworking processes. Its design accommodates users engaged in arc welding, MIG, TIG, and plasma cutting, ensuring seamless transitions through its quick slide-up mechanism. This welding auto darkening helmet supports variable workplace conditions by offering a customized fit through internal sensitivity and delay controls, meeting the distinct needs of industrial operators and technical maintenance personnel. The configurable shade settings and multiple sensor models validate its suitability for precision-driven welding environments where eye safety and operational efficiency are paramount.

Advanced Technical Specifications Enabling Precision Protection
This auto-darkening welding helmet incorporates an auto darkening welding lens with switching speeds as fast as 0.08 milliseconds, minimizing exposure to harmful arc light. The lens operates across DIN 4 to DIN 13 classifications, with adjustable sensitivity and delay parameters to optimize filtering for different welding intensities. Powered by solar cells complemented with replaceable lithium batteries, the system ensures consistent performance without frequent maintenance. The helmet shell, constructed from robust polyamide (PA), balances durability with ergonomic design, supplying user comfort during extended shifts. Certified to EN166/175/379 CE, ANSI Z87.1, and CSA Z94.3, this helmet adheres to stringent safety standards, supporting compliance requirements across global markets.

Integration within Industrial Welding Applications
Utilized across manufacturing, construction, and heavy industry sectors, the welding auto darkening helmet facilitates enhanced welder protection without compromising workflow efficiency. Its rapid-response auto darkening welding lens offers dependable vision clarity and protection for operators conducting high-precision welding or cutting tasks under variable lighting conditions. The helmet’s configurable delay and sensitivity controls enable alignment with industry-specific operational standards, reducing worker downtime caused by helmet adjustments or visual strain. Consequently, this custom auto darkening welding helmet supports safety protocols while streamlining task execution, making it a critical component in welding process optimization and quality assurance frameworks.

Product Advantages

Structural and System Design Benefits
The WH04 welding auto darkening helmet features a modular design facilitating straightforward integration of varying sensor quantities (two or four) to enhance arc detection accuracy and responsiveness. Its custom auto darkening welding helmet architecture includes a quick slide-up mechanism that supports operational flexibility, enabling welders to inspect workpieces without removing the helmet. The PA shell material combines structural resilience with ergonomic considerations, reducing user fatigue over extensive use periods. Additionally, the internal mechanisms for sensitivity and delay modulation permit precise customization, improving contextual adaptability. These design attributes collectively enhance system durability and user interface efficiency in demanding industrial environments.

Performance and Usability Optimization
Equipped with an auto darkening welding lens capable of switching within 0.08 milliseconds, the helmet minimizes eye strain and maximizes protection across various welding currents and light intensities. The dual power sources—solar cells and replaceable lithium batteries—ensure uninterrupted helmet functionality in diverse conditions with minimal maintenance. User operability is enhanced through intuitive controls for shade adjustment and lens testing, presenting a balance of advanced features and straightforward configuration. This welding auto darkening helmet reduces operational interruptions, contributing to increased productivity and compliance with occupational safety regulations. Ergonomic weight distribution and contouring also promote comfort and extended wearability, supporting continuous use in industrial workflows.

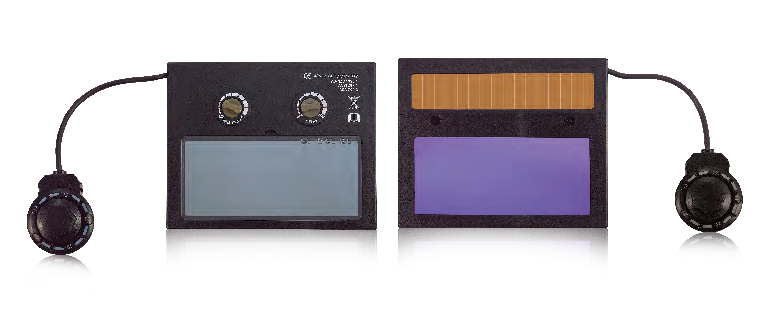

Auto-Darkening Welding Helmet
Model	GL-WH04-1004M
Auto Filter Model	GL-1004M
Auto Filter Size	110 × 90 × 9mm
Viewing Area	96 × 39mm
Shade Control	Light States: DIN 4 Dark States: DIN 9 - 13 External Adjustment
Switching Time	0.3ms
Delay Control Time	0.1 - 0.8s
Sensitivity /Delay Control	Internal Adjustment
Power Supply	Solar Cells, 3V Li-Battery
Lens Control	Auto-On, Auto-Off
Operating Temperature	- 10 ℃ to + 65 ℃
Grind Mode	Yes*
Arc Sensors	2 Arc Sensors
Shell Material	PA
Welding Helmet Weight	520g
CE Approval	EN 166 / 175 / 379 CE, ANSI Z87.1, CSA Z94.3, AS / NZS 1337/1338
CE Optical Class	1 /1/ 1/ 2


Auto-Darkening Welding Helmet
Model	GL-WH04-1007M1G
Auto Filter Model	GL-1007M1G
Auto Filter Size	110 × 90 × 9mm
Viewing Area	92 × 41mm
Shade Control	Light States: DIN 4 Dark States: DIN 9 - 13 External Adjustment
Switching Time	0.3ms
Delay Control Time	0.1 - 0.8s
Sensitivity /Delay Control	Internal Adjustment
Power Supply	Solar Cells, 3V Li-Battery
Lens Control	Auto-On, Auto-0ff
Operating Temperature	- 10 ℃ to + 65 ℃
Grind Mode	Yes*
Arc Sensors	2 Arc Sensors
Shell Material	PA
Welding Helmet Weight	515g
CE Approval	EN 166 / 175 / 379 CE, ANSI Z87.1, CSA Z94.3, AS / NZS 1337 / 1338
CE Optical Class	1/ 1/ 1/ 2

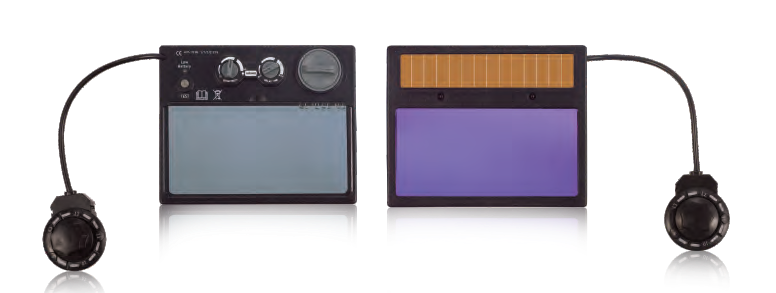

Auto-Darkening Welding Helmet

Auto Filter Model	GL-1006A
Auto Filter Size	110 × 90 × 9mm
Viewing Area	100 × 50mm
Shade Control	Light States: DIN 4 Dark States: DIN 9 - 13 External Adjustment
Switching Time	0.1ms
Delay Control Time	0.1 - 0.5s
Sensitivity/Delay Control	Internal Adjustment
Power Supply	Solar Cells, 3V Li-Battery( CR2032*2, Replaceable )
Battery Indicator	Red LED light indecates that 2 - 3 days remaining battery life
Lens Control	Lens Test Button*, Auto-On, Auto-Off
Operating Temperature	- 10 ℃ to + 65 ℃
Grind Mode	Yes*
Arc Sensors	4 Arc Sensors
Shell Material	PA
Welding Helmet Weight	535g
CE Approval	EN 166 / 175 / 379 CE, ANSI Z87.1, CSA Z94.3, AS / NZS1337 / 1338
CE Optical Class	1/ 1/ 1/ 2 True Color

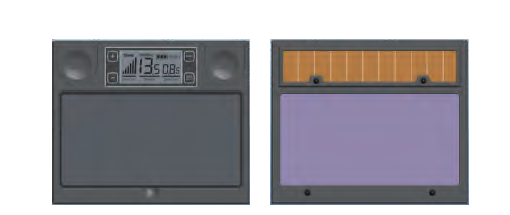

Auto-Darkening Welding Helmet
Model		GL-WH04-1020A
Auto Filter Model		GL-1020A
Auto Filter Size		110 × 90 × 9mm
Viewing Area		100 × 50mm
Shade Control		Light States: DIN 4 Dark States: DIN 5 - 8.5 / 9 - 13.5 Internal Adjustment
Switching Time		0.08ms
Delay Control Time		0.1 - 1.9s
Digital Control &Display		Shade, Delay Time, Sensitivity, Grind Mode, Battery Status
Power Supply		Solar Cells, 3V Li-Battery ( CR2032*2, Replaceable )
Lens Control		Auto-On, Auto-0ff
Operating Temperature		- 10 ℃ to + 65 ℃
Arc Sensors		4 Arc Sensors
Shell Material		PA
Welding Helmet Weight		525g
CE Approval		EN 166 / 175 / 379 CE, ANSI Z87.1, CSA Z94.3, AS / NZS 1337 / 1338
CE Optical Class		1/ 1/ 1/ 2 True Color

Use Scenarios

Application in Industrial Manufacturing and Fabrication
In heavy manufacturing and fabrication facilities, welders are exposed to intense ultraviolet and infrared radiation combined with variable ambient lighting. Deploying an auto-darkening welding helmet like the WH04 within these settings ensures compliance with PPE standards by providing real-time lens darkening to shield against arc rays. The helmet’s multiple arc sensors enhance responsiveness to dynamic welding conditions, safeguarding vision during MIG, TIG, and plasma cutting operations. Integrated into welding booths or stations, the helmet supports quick transitions between welding and quality inspection processes via its slide-up feature, improving workflow efficiency. Its certified design also aids in meeting industrial safety audits and reducing operator fatigue for extended production cycles.

Role in Construction and Maintenance Welding Environments
Field welders operating in construction or onsite maintenance benefit from the WH04's durability and adaptable shade control, which accommodate fluctuating outdoor light conditions and various welding methods. The custom auto darkening welding helmet protects workers against sparks and harmful radiation while maintaining visibility and ergonomic comfort crucial for physical tasks on-site. The helmet’s power system, combining solar and battery energy, guarantees consistent auto-darkening performance even in remote locations with limited access to power sources. Its compliance with international standards assures compatibility with project safety requirements. Moreover, the helmet seamlessly integrates into construction safety protocols, supporting routine welding and inspection workflows under demanding environmental factors.

FAQ

What materials are used to ensure durability in the Auto Darkening Welding Helmet WH04?
The WH04 helmet features a robust PA (Polyamide) shell designed for impact resistance and ergonomic comfort. This durable material supports extended use in harsh welding environments, ensuring reliable protection throughout industrial operations. The combination aligns with global standards for safety and durability.

Can the Auto Darkening Welding Helmet WH04 be customized to fit specific welding workflows?
Yes, Goldland offers customization options for the WH04, including models with different viewing areas, sensor counts, and delay control adjustments. The helmet can also be tailored to customer drawings, providing a precise fit for various industrial welding processes and enhancing operational efficiency.

How is the auto darkening functionality powered and maintained?
The helmet uses advanced solar cells combined with replaceable lithium batteries (CR2032×2 in some models) to power its auto darkening welding lens. This hybrid power supply maintains consistent performance under diverse lighting conditions. Battery replacement and solar recharge support long-term reliability on-site.

What delivery times can buyers expect for orders of the welding auto darkening helmet?
Delivery times for the welding auto darkening helmet WH04 vary depending on order volume and shipping destination. Goldland maintains a scalable supply chain capable of handling large and urgent orders. For specific lead times, please contact the supplier directly to ensure alignment with your project schedule.
